> 제품소개 > 종이필름결속기
Technical Specification

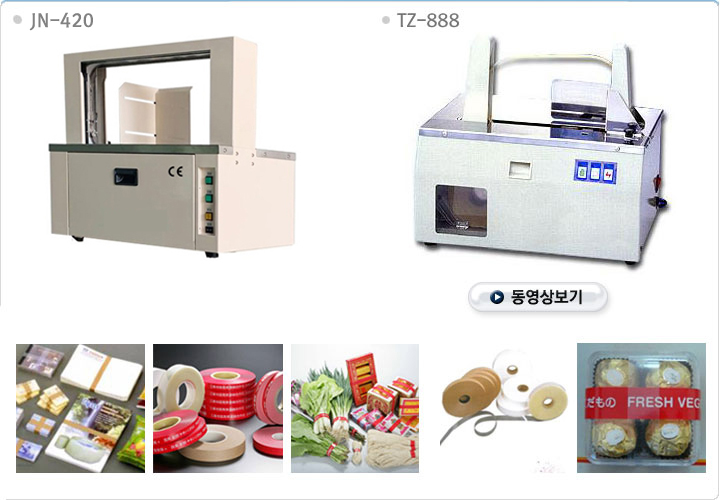

JN-420
TZ-888
Dimension
(W) 560mm X (D) 310 X (H) 490mm
(W) 425mm X (D) 300 X (H) 400mm
Strap capacity
(W) 400mm X (H) 200mm
(W) 240mm X (H) 140mm
Strapping speed
26 Cycles/Min.
20 ~ 25 Cycles/Min.
Tape width
20 ~ 30mm
20, 25, 30mm x 155m (Max.)
Weight
36kg
27.5kg
Power supply
220V 50/60Hz
220V 50/60Hz
1) 종이테이프및 필름테이프를 겸용 사용.
2) 테이프 삽입이 자동으로 삽입되어 조작이 매우 편리함.
3) 테이프가 아치 프레임에 위치하고 있어 테이프가 느슨해져 처지는 현상이 없다.
4) 구조가 간단하여 고장이 적고 유지 보수가 간단하다.

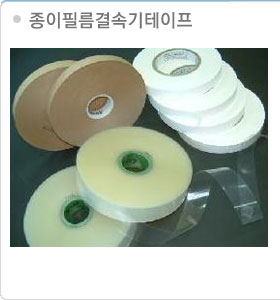

Tape Material
Width
Length
Thickness
Per Carton (NW)
White Kraft
20mm
150m
80g
60 Roll/ CTN (19.0kg)
White Kraft
30mm
150m
80g
40 Roll/ CTN (19.0kg)
Brown Kraft
20mm
150m
73g
60 Roll/ CTN (19.0kg)
Brown Kraft
30mm
150m
73g
40 Roll/ CTN (19.0kg)
OPP Film (OPP)
20mm
150m
100μ ± 5
60 Roll/ CTN (24.2kg)
OPP Film (OPP)
30mm
150m
100μ ± 5
40 Roll/ CTN (24.2kg)
OPP Film (OPP)
20mm
150m
105μ ± 5
60 Roll/ CTN (24.2kg)
OPP Film (OPP)
30mm
150m
105μ ± 5
40 Roll/ CTN (24.2kg)
OPP Film (OPP)
20mm
150m
120μ ± 5
60 Roll/ CTN (24.2kg)
OPP Film (OPP)
30mm
150m
120μ ± 5
40 Roll/ CTN (24.2kg)
Dimension
(W) 560mm X (D) 310 X (H) 1080mm
Strap capacity
(W) 400mm X (H) 200mm
Strapping speed
26 Cycles/Min.
Tape width
20 ~ 30mm
Weight
72kg
Power supply
220V 50/60Hz
Dimension
(W) 542mm X (D) 276 X (H) 376mm
Strap capacity
(W) 300mm X (H) 200mm
Strapping speed
18 ~ 20 Cycles/Min.
Tape width
30 ~ 40mm
Weight
18kg
Power supply
220V 50/60Hz
Dimension
(W) 642mm X (D) 276 X (H) 376mm
Strap capacity
(W) 400mm X (H) 200mm
Strapping speed
18 ~ 20 Cycles/Min.
Tape width
30, 40mm x 600m (Max.)
Weight
19.2kg
Power supply
220V 50/60Hz
Dimension
(W) 640mm X (D) 320 X (H) 690mm
Strap capacity
(W) 240mm X (H) 140mm
Strapping speed
20 ~ 25 Cycles/Min.
Tape width
20, 25, 30, 40mm x 600m (Max.)
Weight
38kg
Power supply
220V 50/60Hz
Dimension
(W) 290mm X (D) 310 X (H) 275mm
Strap capacity
(W) 100mm X (H) 100mm
Strapping speed
22 Cycles/Min.
Tape width
30 ~ 40mm
Weight
13.3kg
Power supply
220V 50/60Hz
Dimension
(W) 442mm X (D) 296 X (H) 376mm
Strap capacity
(W) 200mm X (H) 200mm
Strapping speed
18 ~ 20 Cycles/Min.
Tape width
20 ~ 30mm
Weight
16.8kg
Power supply
220V 50/60Hz
